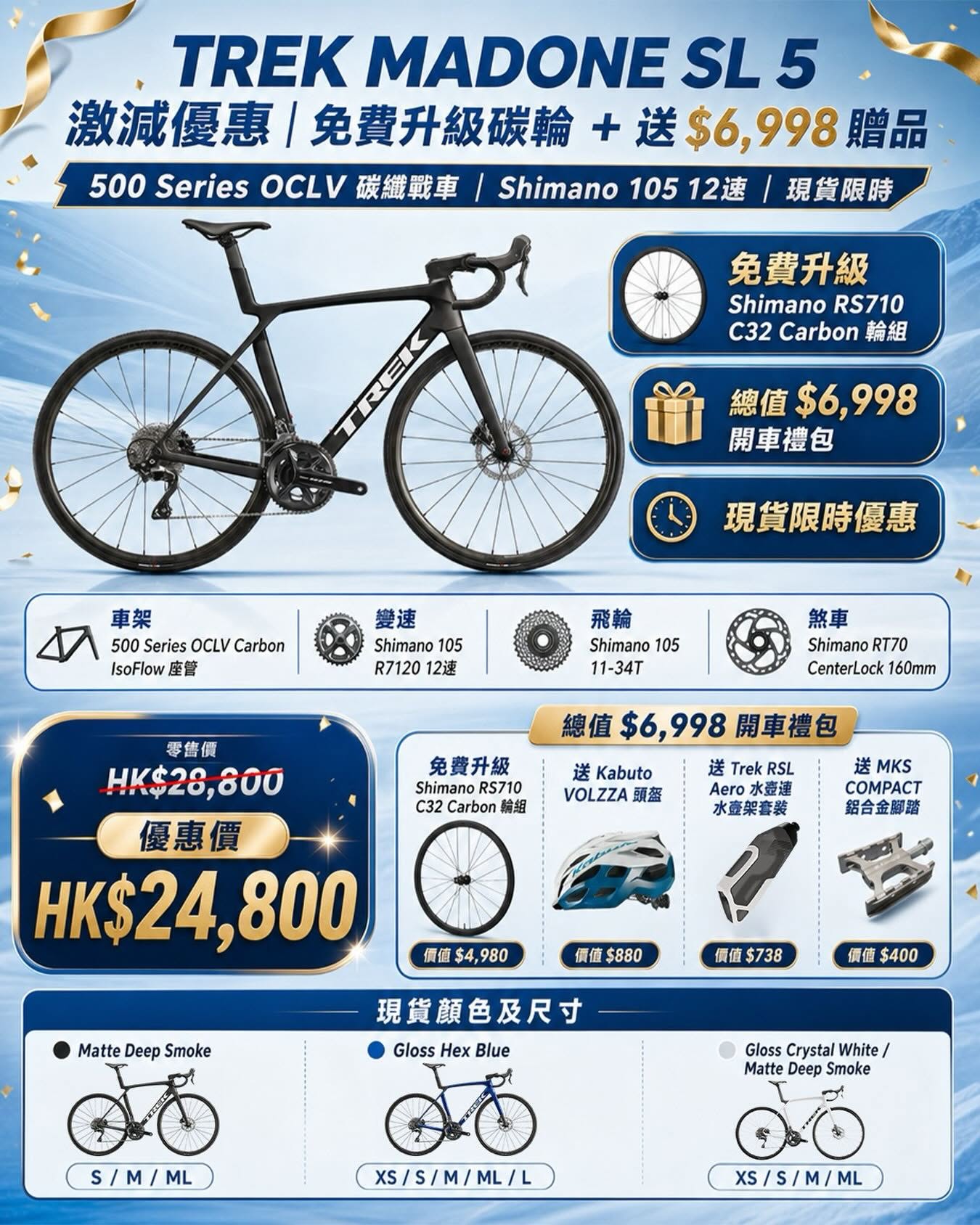

TREK Madone SL 5 Gen 8 公路車
TREK Madone SL 5 Gen 8 公路車
SKU:5319897
Couldn't load pickup availability
TREK Madone SL 5 Gen 8 碳纖維公路車
TREK Madone SL 5 Gen 8 Carbon Road Bike
融合極致氣動與輕量化攀爬性能的全能競速旗艦!TREK Madone SL 5 Gen 8 採用高級別 500 Series OCLV 碳纖維打造,結合 revolutionary IsoFlow 座管技術與 Full System Foil 氣動管型設計,大幅降低風阻同時提升騎乘舒適度。搭配可靠精準的 Shimano 105 12速機械變速與碟煞系統,無論平路衝刺或高山攀爬皆能帶來絕佳競速優勢。
🚲 競速核心亮點:
• 500 Series OCLV 碳纖維:輕量與高剛性的完美平衡,提供直接流暢的傳動效率。
• IsoFlow 舒適座管技術:革命性空心座管結構,吸震順應性大幅提升,長時間高強度騎乘更持久。
• Shimano 105 12速系統:全套 R7120 機械手煞變速,檔位銜接綿密,下坡制動安全穩定。
• UDH 通用後變速勾 & T47 螺紋中軸:現代化標準配置,維護簡便且剛性出色。
核心特點 (Key Features)
- Full System Foil 氣動管形:經過整體氣動優化,減低空氣阻力,提升巡航速度。
- RCS 全整合頭碗系統:乾淨俐落的全內走線設計,兼顧完美氣動表現與簡潔外觀。
- Bontrager Tubeless Ready 輪組:支援真空胎系統,配備 Bontrager R1 防刺外胎。
- 可拆式氣動防落鏈器:有效防止掉鏈,保護高價值碳纖維車架。
產品規格 (Specifications)
| 規格項目 (Spec) | 詳細內容 (Details) |
|---|---|
| 品牌與型號 (Brand & Model) | TREK Madone SL 5 Gen 8 |
| 車架 (Frame) | 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle |
| 前叉 (Fork) | Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle |
| 變速手把 (Shifters) | Shimano 105 R7120, 12-speed |
| 前變速器 (Front Derailleur) | Shimano 105 R7100, braze-on, down swing |
| 後變速器 (Rear Derailleur) | Shimano 105 R7100, 36T max cog |
| 大齒盤 (Crankset) | Shimano 105 R7100, 50/34T (XS/S: 165mm, M: 170mm, ML/L: 172.5mm, XL: 175mm) |
| 中軸 (Bottom Bracket) | Praxis, T47 threaded, internal bearing |
| 飛輪 (Cassette) | Shimano 105 R7101, 11-34T, 12-speed |
| 鏈條 (Chain) | Shimano SLX M7100, 12-speed |
| 輪圈 (Rims) | Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve |
| 前後花鼓 (Hubs) | Bontrager alloy, sealed bearing, CenterLock disc (Front: 100x12mm / Rear: 142x12mm) |
| 外胎 (Tires) | Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x28 mm (Max clearance: 32 mm) |
| 煞車碟盤 (Brake Rotors) | Shimano RT70, CentreLock, 160 mm (Max: Front 180mm / Rear 160mm) |
| 座墊 (Saddle) | Verse Short / Bontrager Aeolus Comp, steel rails (145mm / 155mm depending on size) |
| 座管 (Seatpost) | Madone aero carbon seat post, 0 mm offset |
| 車把 (Handlebar) | Bontrager Comp, alloy, 31.8 mm (XS: 36cm, S/M: 38cm, ML/L: 40cm, XL: 42cm control width) |
| 龍頭 (Stem) | Trek RCS Pro, -7-degree (XS: 80mm, S/M: 90mm, ML/L: 100mm, XL: 110mm) |
| 重量 (Weight) | ML Size - 8.70 kg / 19.19 lbs (with tubes) |
| 承重限制 (Weight Limit) | 最大總承載重量 125 kg / 275 lbs (含單車、騎士與裝備) |
