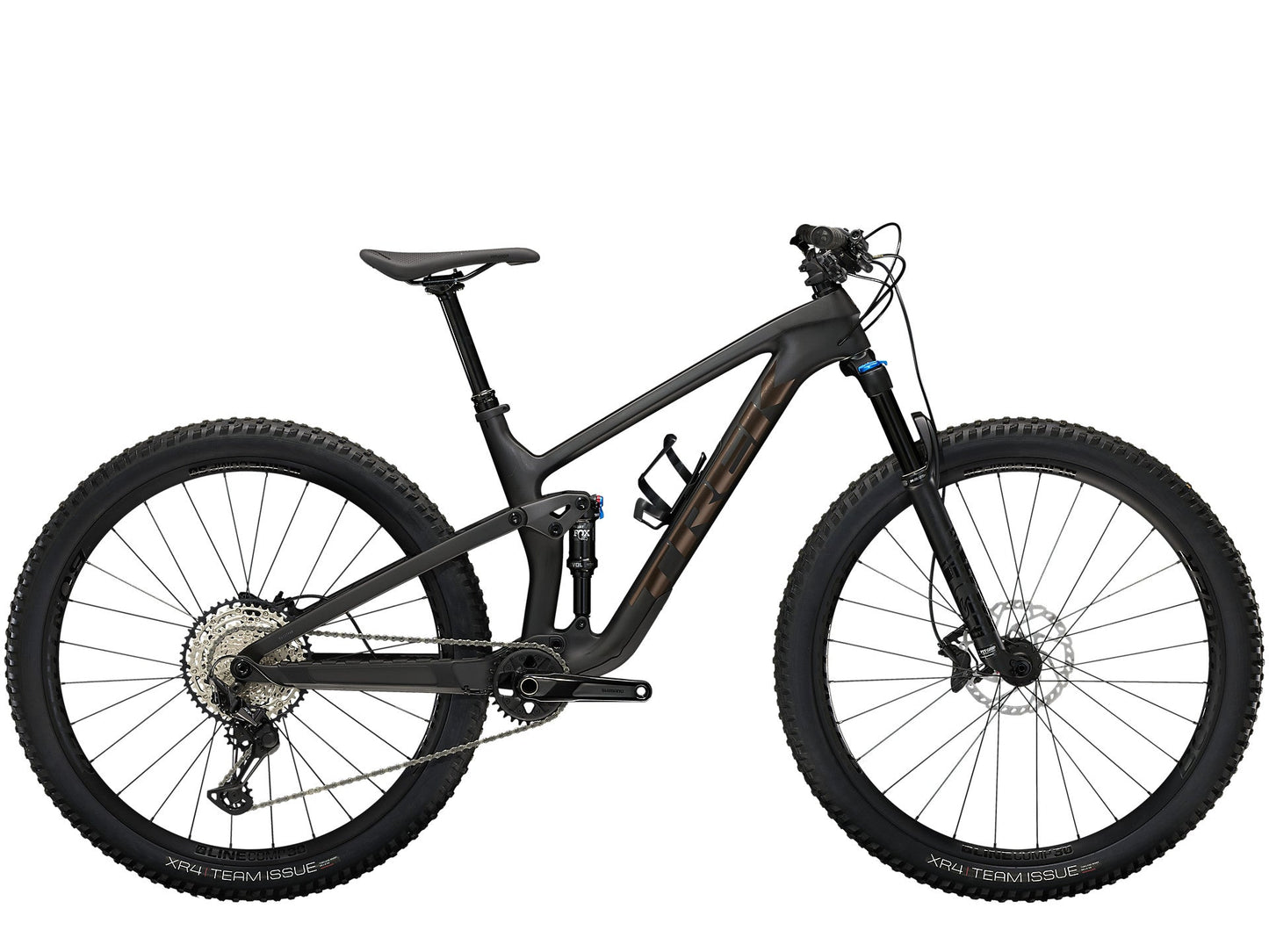

TREK 2023 Top Fuel 9.7 SLX/XT carbon fiber front and rear suspension bike-Matte Raw Carbon black/TREK 2023 TOP FUEL 9.7 SLX/XT CARBON SUS BIKE-MATTE RAW CARBON
TREK 2023 Top Fuel 9.7 SLX/XT carbon fiber front and rear suspension bike-Matte Raw Carbon black/TREK 2023 TOP FUEL 9.7 SLX/XT CARBON SUS BIKE-MATTE RAW CARBON
SKU:5261027
Couldn't load pickup availability
Top Fuel 9.7 is a quick and nimble full suspension carbon mountain bike that fuses the flat-out speed of a cross country bike with the trail-munching appetite of a trail bike. It lets you fly up climbs, hammer through flat sections, and keep on truckin' on rough descents.
Frameset
| Frame | OCLV Mountain Carbon, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120mm travel |
|---|---|
| Fork | Fox Rhythm 34, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 120 mm travel |
| Shock | Fox Performance Float DPS, 3-position damper, 185x50mm |
| Max compatible fork travel | 130mm (541mm axle-to-crown) |
| *Wheel front |
Size: XS Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 27.5'' |
|---|---|
|
Size: S, M, ML, L, XL Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29'' |
|
| *Wheel rear |
Size: XS Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 54, 6-bolt, Boost148, 12mm thru axle, 27.5'' |
|
Size: S, M, ML, L, XL Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 29'' |
|
| Skewer rear | Bontrager Switch thru axle, removable lever |
| *Tire |
Size: XS Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120tpi, 27.5x2.40'' |
|
Size: S, M, ML, L, XL Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120tpi, 29x2.40" |
|
| Tire part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip | Bontrager TLR |
| Max tire size | Frame: 29x2.50" (XS: 27.5x2.50"), Fork: see manufacturer |
| Shifter | Shimano XT M8100, 12 speed |
|---|---|
| Rear derailleur | Shimano XT M8100, long cage |
| *Crank |
Size: XS, S, M, ML, L Shimano Deore M6120, 30T ring, 55 mm chainline, 170 mm length |
|
Size: XL Shimano Deore M6120, 30T ring, 55 mm chainline, 175 mm length |
|
| *Bottom bracket |
Size: XS, S, M, ML, L, XL Shimano BB-MT501 BSA |
|
Size: XS, S, M, ML, L, XL Shimano SM-BB52, 73mm, threaded external bearing |
|
| Cassette | Shimano SLX M7100, 10-51T, 12 speed |
| Chain | Shimano SLX M7100, 12 speed |
| Max chainring size | 1x: 36T round, 34T oval, min 28T |
| Saddle | Bontrager Arvada, steel rails, 138 mm width |
|---|---|
| *Seatpost |
Size: XS,S TranzX JD-YSP39, 100 mm travel, internal routing, 34.9 mm |
|
Size: M,ML TranzX JD-YSP39, 150 mm travel, internal routing, 34.9 mm |
|
|
Size: L, XL TranzX JD-YSP39, 170 mm travel, internal routing, 34.9 mm |
|
| *Handlebar |
Size: XS,S Bontrager Line, alloy, 35 mm, 27.5 mm rise, 750 mm width |
|
Size: M, ML, L, XL Bontrager Line, alloy, 35mm, 27.5mm rise, 780mm width |
|
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| Stem | Bontrager Elite, 35mm, 0 degree, 45mm length |
| Headset | Knock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8" top, 1.5" bottom |
| Brake | Shimano M6120 4-piston hydraulic disc |
| *Brake rotor |
Size: XS, S, M, ML, L, XL Shimano RT66, 6-bolt, 160mm |
|
Size: XS, S, M, ML, L, XL Shimano RT66, 6-bolt, 180mm |
| Weight | M - 13.38 kg / 29.51 lbs (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
