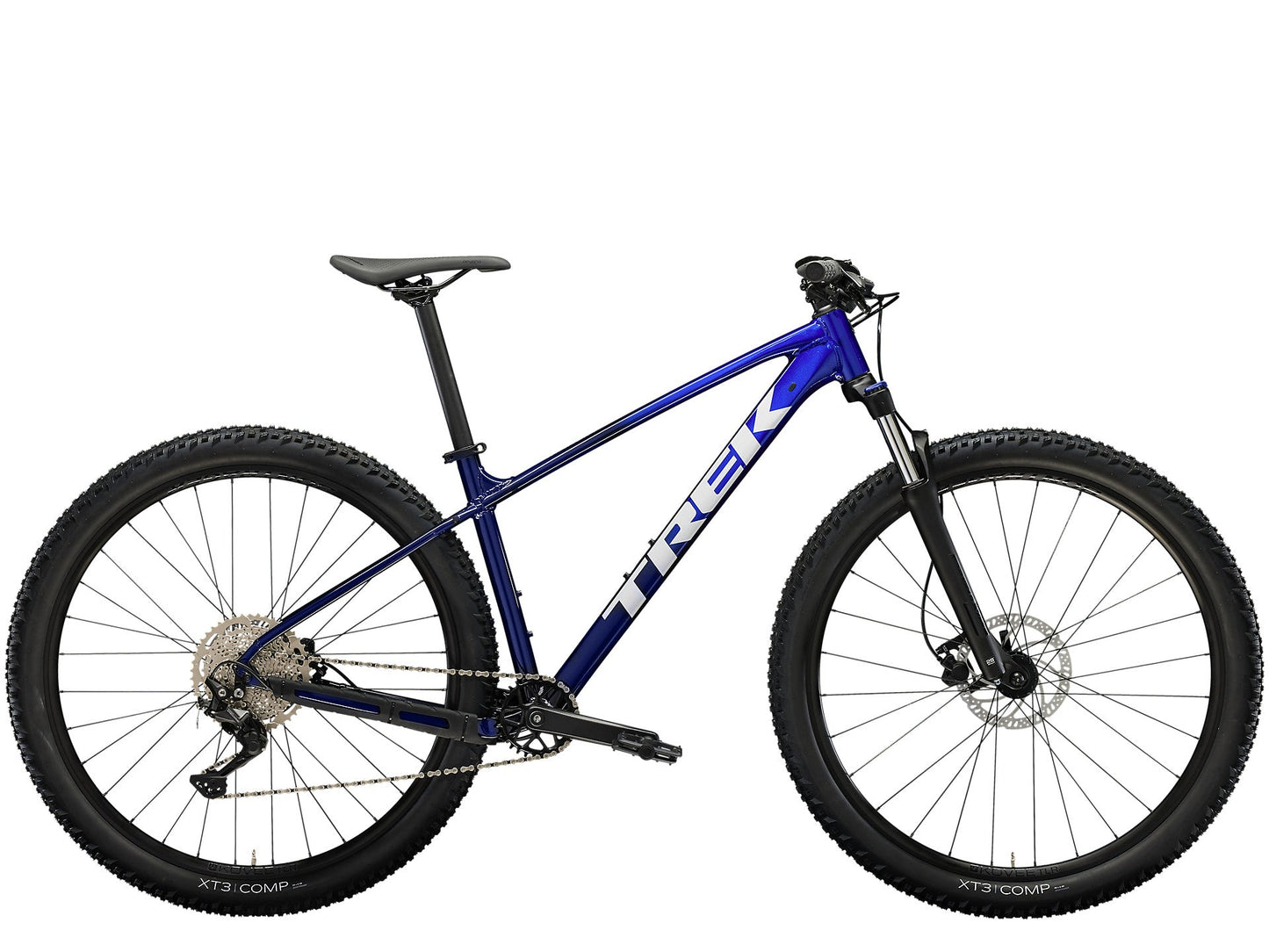

Trek 2023 Marlin 6 Gen 3 Front Suspension Disc Brake/Trek 2023 Marlin 6 Gen 3 Frontsus Bike
Trek 2023 Marlin 6 Gen 3 Front Suspension Disc Brake/Trek 2023 Marlin 6 Gen 3 Frontsus Bike
SKU:5277257
Regular price
HK$5,980.00
Regular price
HK$5,980.00
Sale price
HK$5,980.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The Marlin 6 is the perfect ride for progressing your skills on the trails. Its updated slacker frame geometry makes it easier to control on descents while the suspension fork takes the edge off bumpy trails. Integrated rack and kickstand mounts make it easy to add accessories to this versatile steel.
Specifications:
Frameset
| *Frame |
Size: XXS, XS Alpha Silver Aluminum, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew |
|---|---|
|
Size: S , M , ML , L , XL , XXL Alpha Silver Aluminum, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew |
|
| *Fork |
Size: XXS SR Suntour XCM 30, coil spring, lockout, preload, 100 mm QR, 100 mm travel, 26" wheel |
|
Size: XXS SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 26'' wheel, 100 mm QR, 100 mm travel |
|
|
Size: XS, S SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel |
|
|
Size: XS, S SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5'' wheel, 100 mm QR, 100 mm travel |
|
|
Size: M , ML , L , XL , XXL SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel |
|
|
Size: M , ML , L , XL , XXL SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46 mm offset for 29'' wheel, 100 mm QR, 100 mm travel |
|
| Max compatible fork travel | 120mm, XXS: 80mm |
Wheels
| Hub front | Formula DC-20, alloy, 6-bolt, 100 mm ThruSkew |
|---|---|
| Hub rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR |
| *Skewer rear |
Size: XXS, XS, S, M, ML, L, XL, XXL Bontrager Switch thru axle |
|
Size: XXS, XS, S, M, ML, L, XL, XXL 173x5mmQR |
|
| *Rim |
Size: XXS, XS, S Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve |
|
Size: M , ML , L , XL , XXL Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve |
|
| Spokes | 14g stainless steel |
| *Tyre |
Size: XXS Bontrager XT3 Comp, wire bead, 30 tpi, 26x2.35" |
|
Size: XS, S Bontrager XT3 Comp, wire bead, 30 tpi, 27.5x2.40" |
|
|
Size: M , ML , L , XL , XXL Bontrager XT3 Comp, wire bead, 30 tpi, 29x2.40" |
|
| Max tire size | Frame: 29x2.40" (XXS: 26x2.40", XS & S: 27.5x2.40"), Fork: See manufacturer |
Drivetrain
| Shifter | Shimano Deore M4100, 10 speed |
|---|---|
| Rear derailleur | Shimano Deore M5120, long cage |
| *Crank |
Size: XXS Prowheel C10Y-NW, 30T steel narrow-wide ring, 160 mm length |
|
Size: XS, S, M, ML, L, XL, XXL Prowheel C10Y-NW, 30T steel narrow-wide ring, 170 mm length |
|
| Bottom bracket | VP BC73, 73 mm, threaded cartridge |
| Cassette | Shimano Deore M4100, 11-46, 10-speed |
| Chain | KMC X10, 10-speed |
| Pedal | VP-536 nylon platform |
| Max. chainring size | 1x: 34T, 2x: 36/22 |
Components
| Saddle | Bontrager Arvada, steel rails, 138 mm width |
|---|---|
| *Seatpost |
Size: XXS Bontrager alloy, 31.6 mm, 12 mm offset, 300 mm length |
|
Size: XS, S, M Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length |
|
|
Size: ML , L , XL , XXL Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length |
|
| *Handlebar |
Size: XXS, XS Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width |
|
Size: S Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width |
|
|
Size: M , ML , L , XL , XXL Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width |
|
| Grips | Bontrager XR Endurance Comp, lock-on |
| *Stem |
Size: XXS, XS, S Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 35 mm length |
|
Size: M , ML , L Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length |
|
|
Size: XL Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length |
|
|
Size: XXL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length |
|
| Head set | Semi-integrated, 1-1/8" |
| Brake | Tektro HD-M275 hydraulic disc, 180 mm rotor |
| Brake Set | Tektro HD-M275 hydraulic disc, 160 mm rotor |
| Rotor size | Max brake rotor sizes - Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer |
Weight
| Weight | M - 14.80 kg / 32.63 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lbs). |
