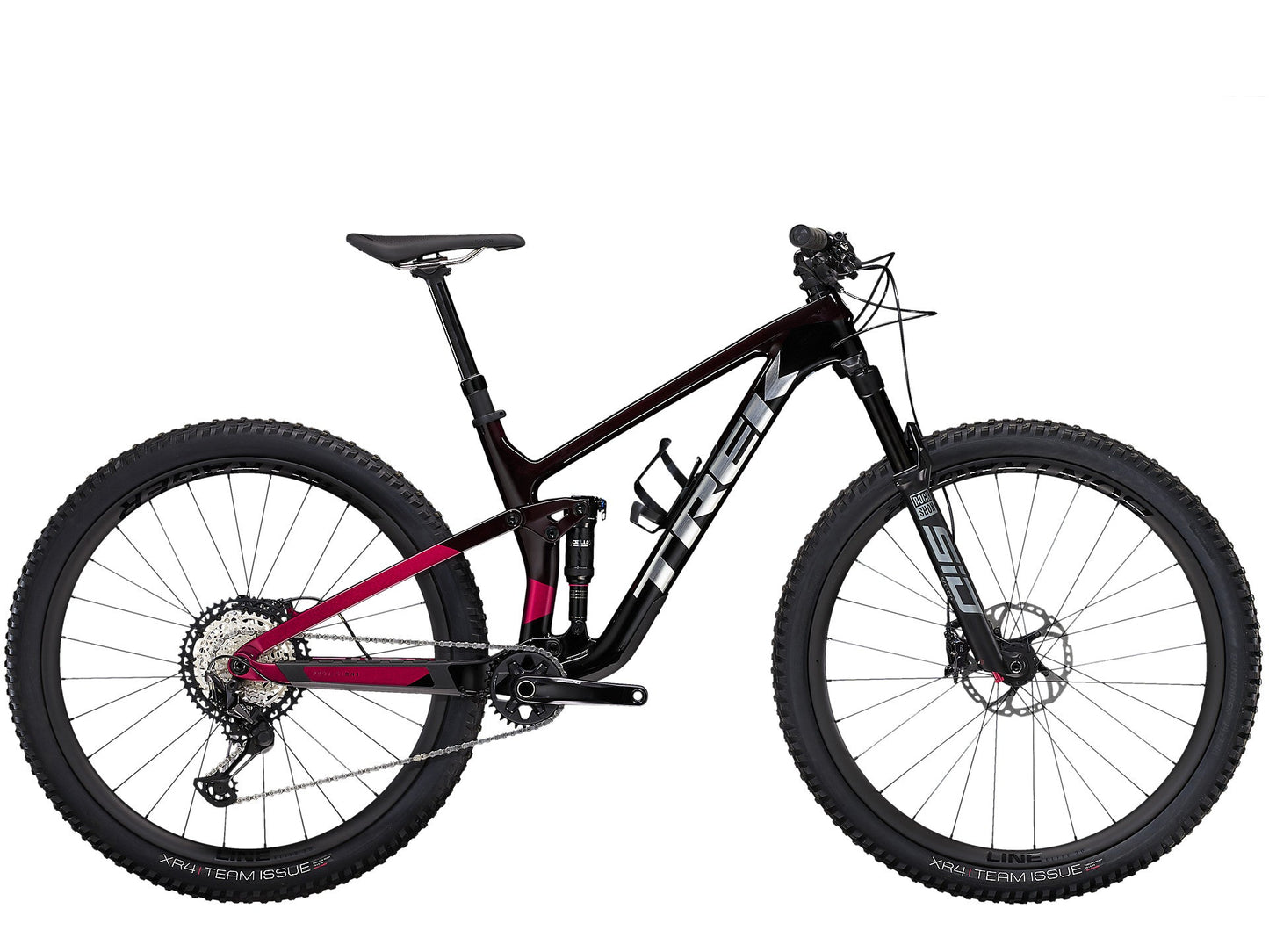

TREK 2022 TOP FUEL 9.8 XT 29" MTB, Carbon Red Smoke/Trek Black / TREK 2022 TOP FUEL 9.8 XT 29" MTB, GLOSS RED/MATTE CARBON SMOKE

TREK 2022 TOP FUEL 9.8 XT 29" MTB, Carbon Red Smoke/Trek Black / TREK 2022 TOP FUEL 9.8 XT 29" MTB, GLOSS RED/MATTE CARBON SMOKE

5261953

HK$33,800.00
HK$56,800.00 HK$33,800.00
Sale Sold out
Shipping calculated at checkout.
size
The Top Fuel 9.8 is a full-suspension carbon fiber mountain bike designed for riders who don’t settle for mediocrity. It doesn't compromise on either parts or riding style. It combines a high-end parts configuration with a lightweight carbon fiber frame to create an incredibly fun vehicle that's capable of going fast on smooth pavement while being fun on technical singletrack.

Frame:


  • Frame: OCLV Mountain Carbon, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube protection, magnesium swingarm link, Mino Link, ABP, Boost148, 120mm of travel.
  • Fork: RockShox Pike Select+, DebonAir spring, Charger 3 RC2 shock, tapered front steerer, 44mm offset, Boost110, 15mm Maxle Stealth coilover, 130mm travel.
  • Rear shock: RockShox Deluxe Ultimate RCT, 185mm x 50mm.


Wheelset:

  • Front wheel: Bontrager Line Elite 30, OCLV Mountain carbon, tubeless ready, 6-bolt, Boost110, 15mm thru axle.
  • Rear wheel: Bontrager Line Elite 30, OCLV Mountain carbon, tubeless ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle.
  • Rear wheel quick release axle: Bontrager Switch through axle, removable handle.
  • Tires: Bontrager XR4 Team Issue, tubeless-ready, Inner Strength sidewalls, aramid beads, 120 TPI, 29x2.40 inches.
  • Tire Components: Bontrager TLR Sealant, 180 ml/6 oz.
  • Rim tape: Bontrager TLR.


Transmission system:

  • Shifting handle: Shimano XT M8100, 12-speed.
  • Rear derailleur: Shimano XT M8100, long cage.
  • Crank: Shimano XT M8120, 30T, 55mm chainline, 170mm length.
  • Chassis: Shimano BB-MT501 BSA.
  • Cassette: Shimano XT M8100, 10-51, 12-speed.
  • Chain: Shimano Ultegra/XT M8100, 12-speed.


Accessories:

  • Saddle: Bontrager Arvada, Ostian rail, 138mm width.

  • Seat post:
    • Size:S
      Bontrager Line Elite Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, length 345mm.
    • Size: M, M/L
      Bontrager Line Elite Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, length 440mm.
    • Size: L
      Bontrager Line Elite Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, length 485mm.
    • Size: XL
      Bontrager Line Elite Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, length 550mm.

  • Handle/faucet (integrated):
    • Size: S
      Bontrager RSL integrated handle/faucet, OCLV carbon fiber, 27.5mm handle rise, 820mm width, 0 degree faucet rise, 35mm faucet length.
    • Sizes: M, M/L, L, XL
      Bontrager RSL integrated handle/faucet, OCLV carbon fiber, 27.5mm handle rise, 820mm width, 0 degree faucet rise, 45mm faucet length.
  • Handlebar Cover: Bontrager XR Trail Elite, nylon fixed.

  • Headset: Knock Block 2.0 integrated, 72-degree radius (including infinite radius piece), sealed ball bearings, 1-1/8" top, 1.5" bottom.

  • Brakes: Shimano XT M8120 4-piston hydraulic disc brake.

  • Brake rotor: Shimano RT86, 6-bolt, 180mm.


Accessories:

  • Bags: Bontrager BITS Internal Frame Storage Bags.


weight:

  • Weight: Size M - 13.00 kg / 28.67 lbs (with TLR sealant, no tube).
  • Weight Limit: The maximum total weight limit for this vehicle (including bike, rider and cargo) is 136 kg (300 lbs).

For inquiries about physical store inventory, please call: 2670 2318. Thank you for your support! 🙏
