Tern

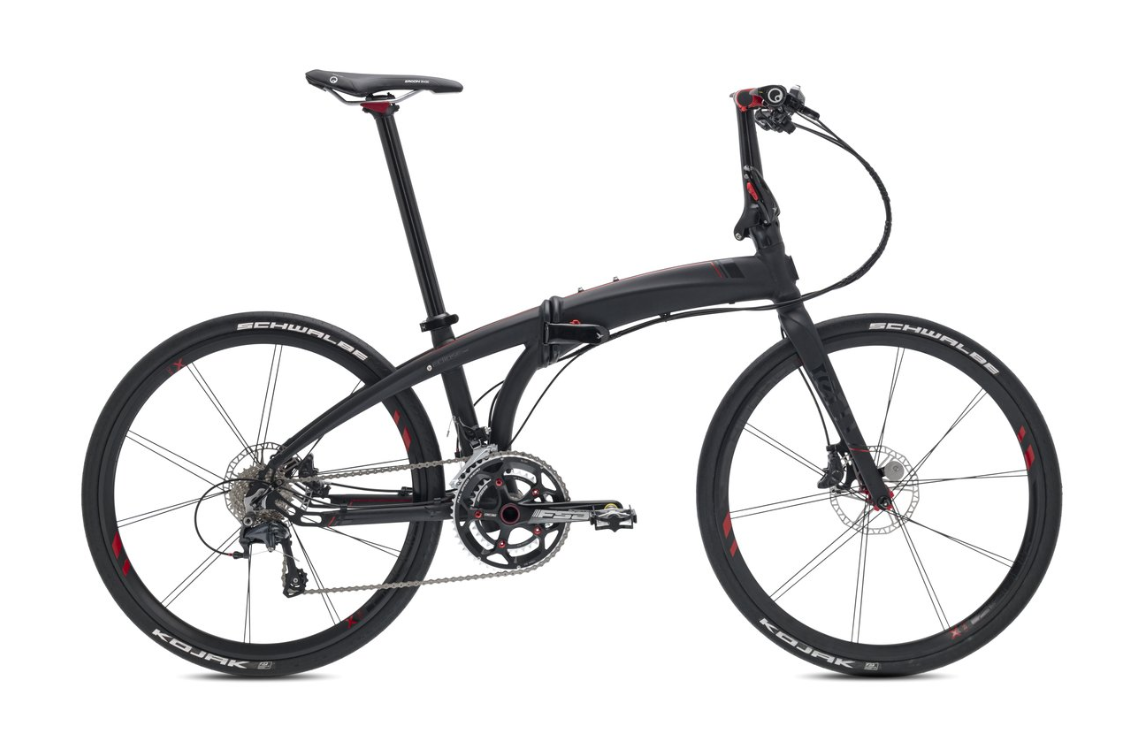

TERN ECLIPSE X22 26" FOLDING BIKE BK/RD

TERN ECLIPSE X22 26" FOLDING BIKE BK/RD

HK$24,800.00
HK$24,800.00
Sale Sold out
Shipping calculated at checkout.

The meaning of the birth of the Eclipse X22 is to become the fastest folding bicycle in the world. The hand-made 26” wheelset and geometric frame look not much different from a full-size road bike, but its The folding time only takes 10 seconds. In addition, it has ULTEGRA 's transmission system, which meets the new international standards. Coupled with its invisible appearance and hydroformed front fork, the X22 becomes a new milestone for TERN .

-Kinetix Pro X 26” wheels with straight-pull Sapim spokes for a blazingly fast ride
-Shimano Ultegra/105 drivetrain
-Shimano hydraulic disc brakes provide greater power for emergency braking
-Adjustable VRO handlebar makes it more convenient for you to fine-tune your seat
-High-performance Kojak road tires with run-flat protection
-After folding, it is more convenient to store indoors and better anti-theft.

Specifications

General Info

Speeds:
2 x 11
Weight:
11.3kg (24.9lb)
Gear Inches:
30" - 112" (2.38 - 8.92 m)
Folding Size:
42 × 89 × 81 cm (16.5 × 35 × 31.9 in)
Folding Time:
10 seconds
Frame Sizes:
One size
Distance: Seatpost to Handlebar:
60 - 64 cm (23.6 - 25.2 in)
Distance: Saddle to Pedal:
77 - 104 cm (30.3 - 40.9 in)
Suggested Rider Height:
148 - 195 cm (58.3 - 76.8 in)
Max Gross Vehicle Weight:
120kg (264.6lb)
Max Rider Weight:
105kg (231.5lb)
Frame
Frame:
Tern Eclipse, hydroformed 7005-Al w/ smooth TIG welding, 3 patented technologies, Tern Eclipse, hydroformed aluminum w/ smooth TIG welding, OCL+ joint, 3 patented technologies
Fork:
Tarsus, 6061-AL, hydroformed
Cockpit
Handlepost:
Tern Physis 3D (G2), 3D forged, 5 patented technologies, 12°, 250 mm
Stem:
Syntace VRO, adjustable, Built for Tern
Headset:
Flux Pro, angular contact bearings, Physis integrated
Handlebar:
Kinetix Pro X, 7050-Al, multi-stage butted
Grips/Bar Tape:
Ergon GX1 Leichtbau
Saddle:
Ergon SMC10 Sport Gel
Seat post:
Stasis by Syntace, 7050-AL, hard-anodized
Seatpost Clamp:
Stasis by Syntace, 7050-AL, hard-anodized
Brakes
Front Brake:
Shimano Deore, hydraulic disc
Rear Brake:
Shimano Deore, hydraulic disc
Brake Levers:
Shimano Deore, hydraulic disc
Brake Cable & Housing:
Shimano, hydraulic
Wheels
Front Hub:
Kinetix Pro X Disc, 20H, straight-pull
Rear Hub:
Kinetix Pro X Disc, 20H, straight-pull, asymmetric flange
Spokes and Nipples:
Sapim CX-Sprint, internal Polyax nipples
Rims:
Kinetix Pro X, 6061-T10 aluminum, patented Rolf Paired Spoke design
Tires:
Schwalbe Kojak, 35-559, foldable, puncture protection, 95 psi
Transmission
Shifter(s):
Shimano Ultegra trigger, 2x11spd
Front Derailleur:
Shimano 105
Rear Derailleur:
Shimano Ultegra
Crankset:
FSA Gossamer Pro, 50/34T, BB386 oversized aluminum spindle
Cassette/Freewheel:
Shimano 105, 11-28T, 11spd
Bottom Bracket:
FSA MegaEVO, BB386
Chain:
Shimano 105, 11spd
Pedals:
MKS UB-LITE EZY, QR
Shifter Cable & Housing:
Jagwire LEX-SD, ultra-slick polymer coating, alloy ferrules
Bells & Whistles
Bell:
Pitch, Brass
Clip System:
Magnetix 2.0
Luggage Socket:
Yes
Rear Light:
BioLogic TailLight

For details, please refer to: https://www.ternbicycles.com/hk/bikes/tech/162573#162551

----------------------------------------
