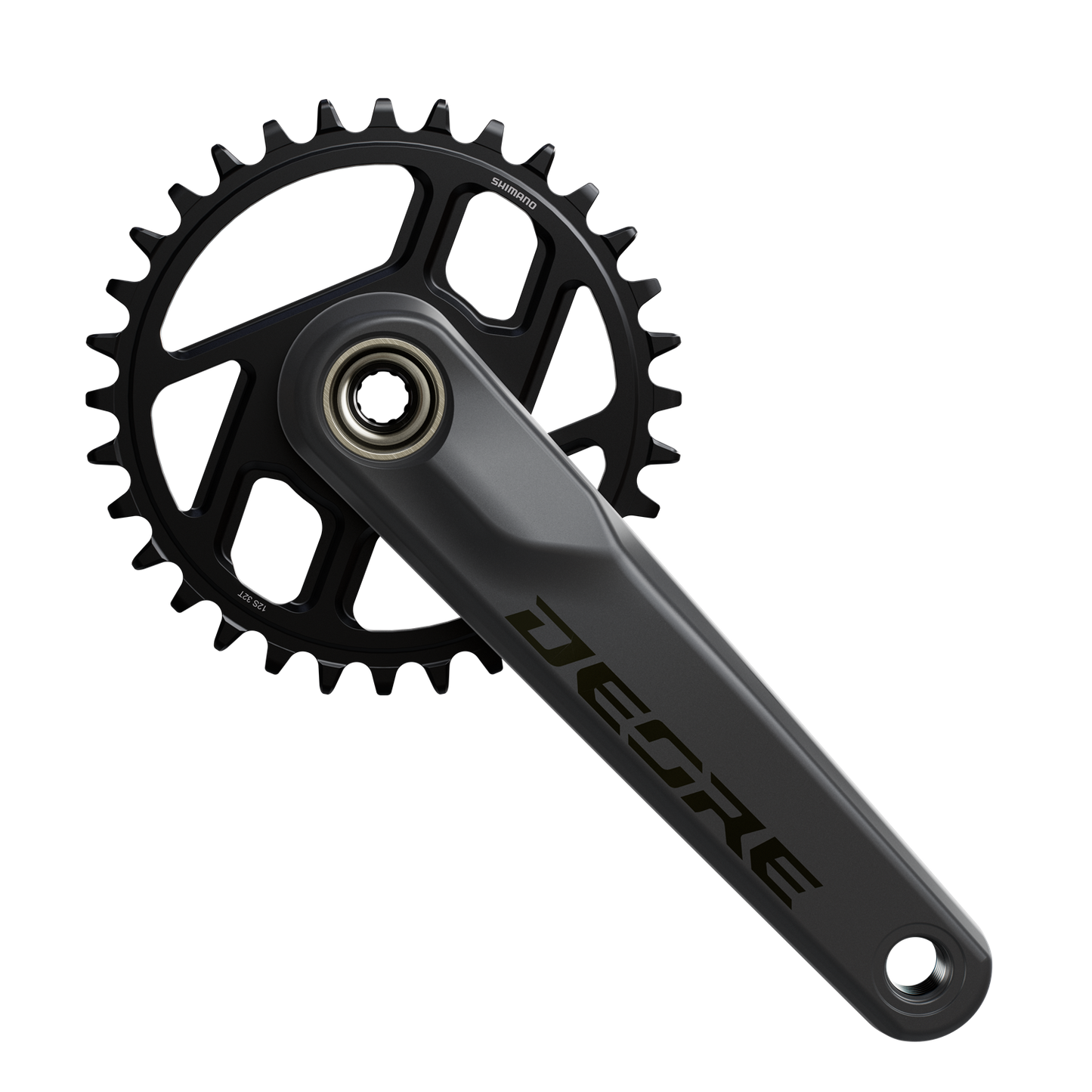

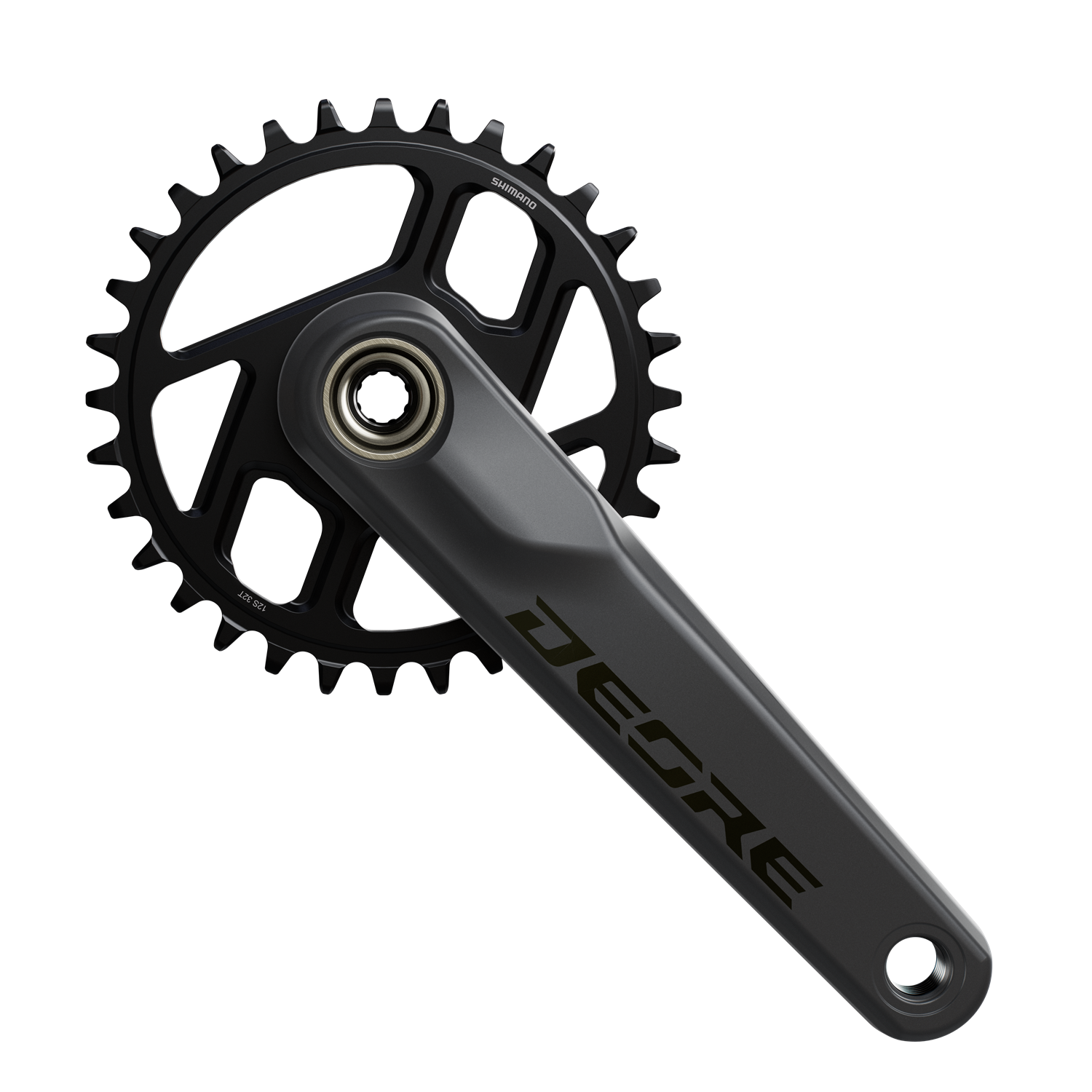

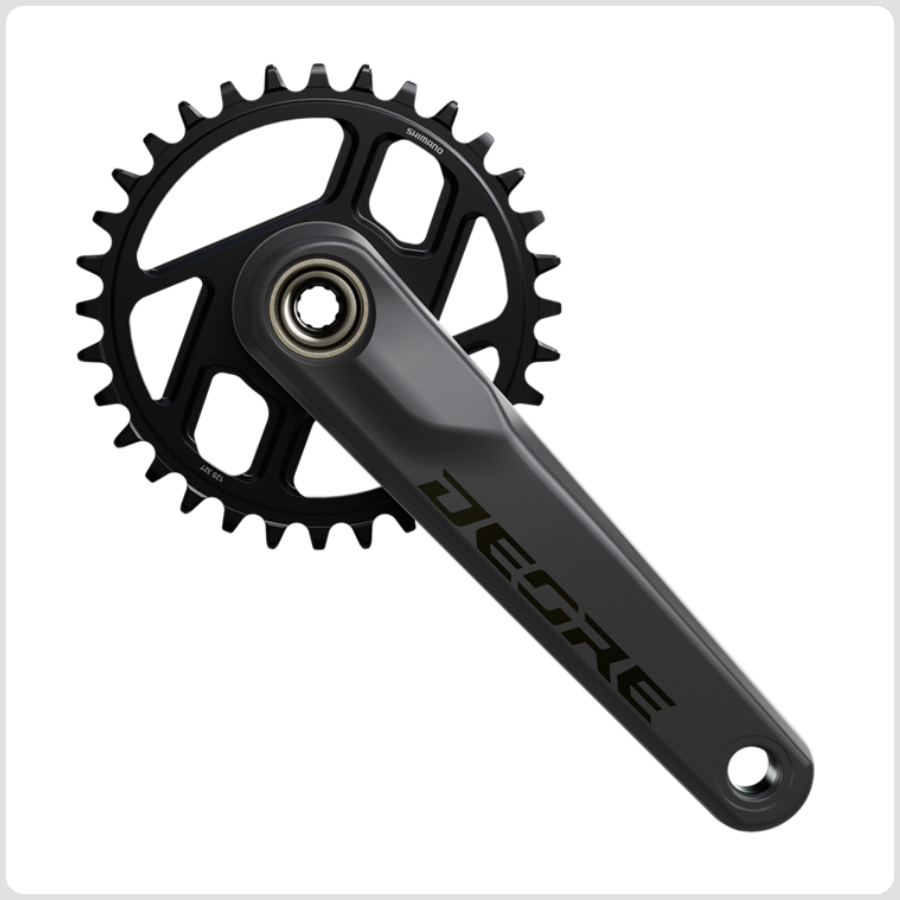

Shimano DEORE 12-Speed Front Chainwheel FC-M6200-1
Shimano DEORE 12-Speed Front Chainwheel FC-M6200-1
SKU:EFCM6200CXA0
Couldn't load pickup availability
DEORE CRANKSET 1X12s

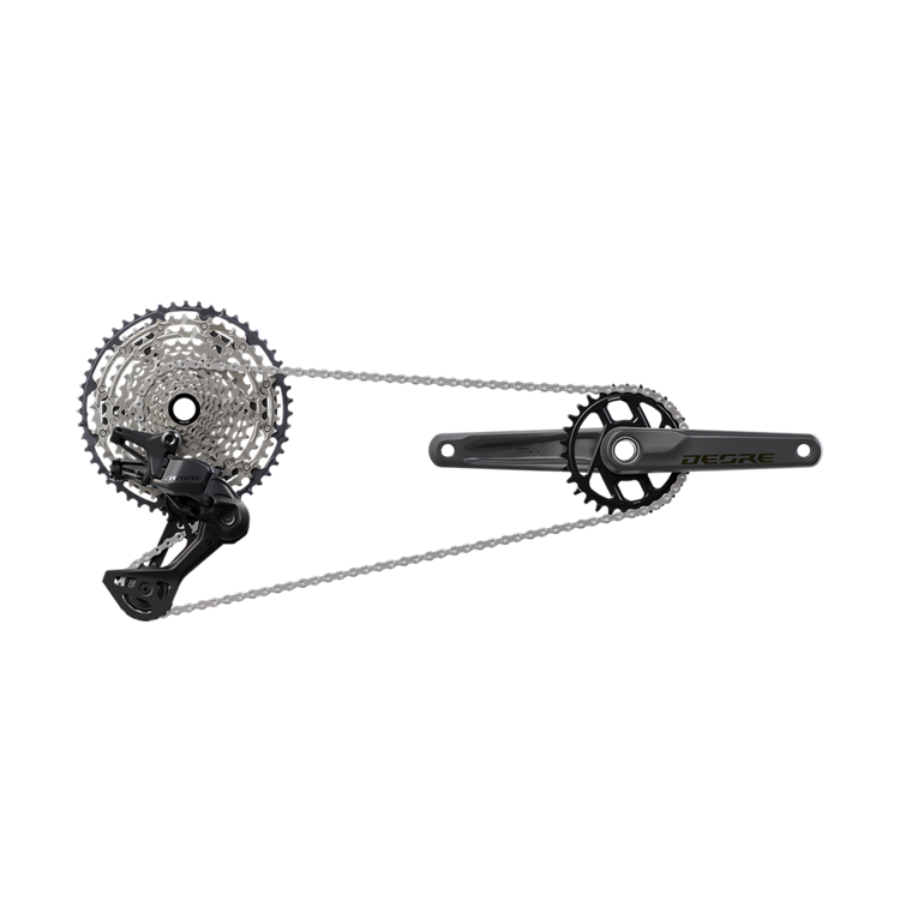

The two-piece M6200 Trail/Enduro crankset is built around rigidity, durability and quality, delivering a responsive crankset that keeps you rolling consistently, optimized for the balance of strength and weight following the XTR/XT design. The alloy crankset features a steel chainring for added strength, while the DYNAMIC CHAIN ENGAGEMENT+ technology eliminates worry around dropped chains.
FEATURE
DYNAMIC CHAIN ENGAGEMENT+: Optimized narrow-wide chainring tooth profile for better chain retention and smoother shifting.

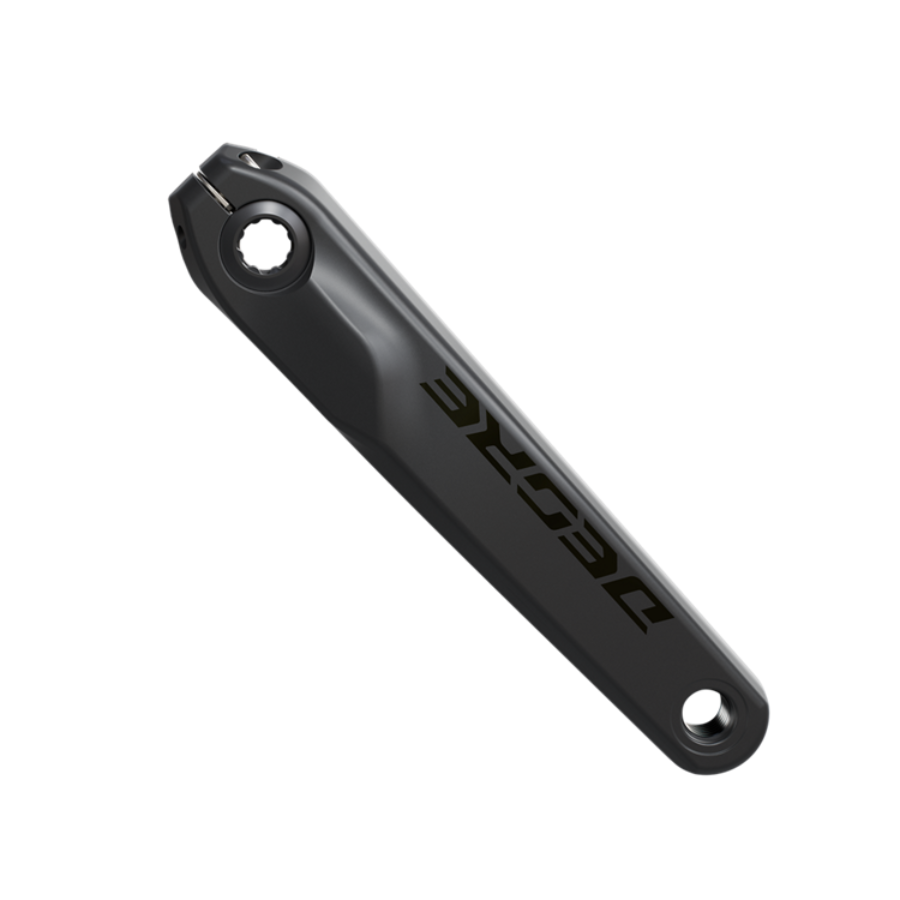

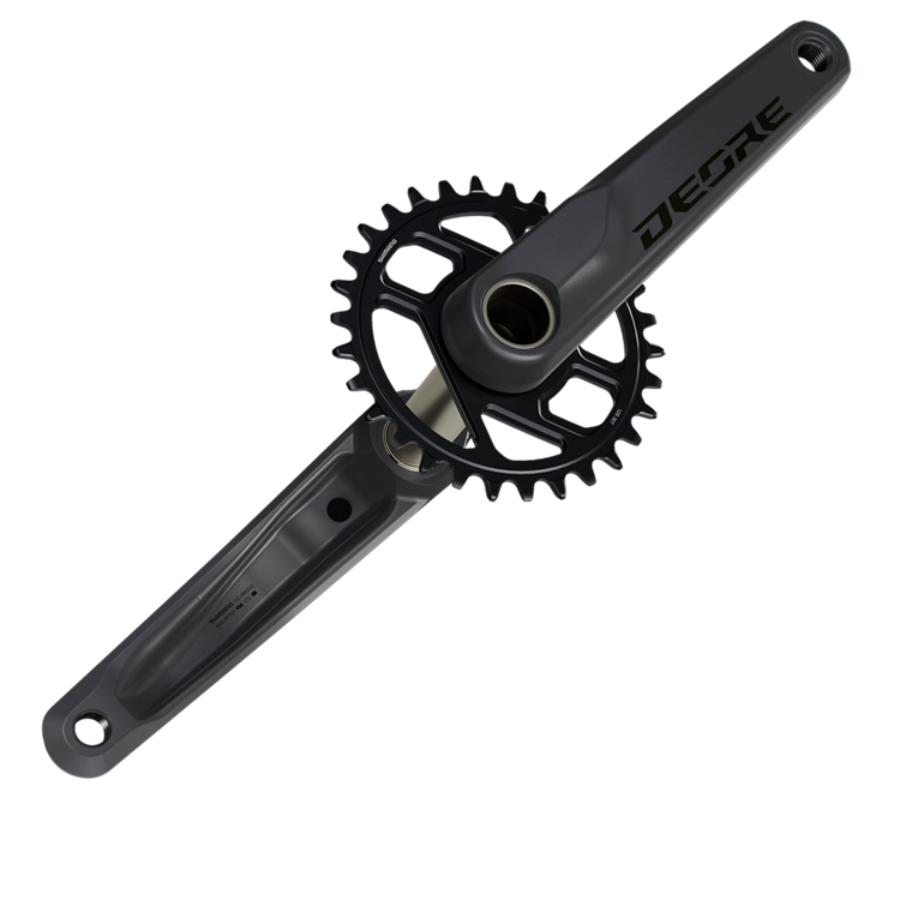

Two-Piece Construction: A rigid and durable alloy crankset spinning on a 24 mm steel axle.
Standard Direct Mount: Durable steel chainring.
| Specification Item | Details / Value |
| Model No. | FC-M6200 |
| Series | DEORE |
| Rear Speeds | 12 |
| Compatible Chain | HG 12-speed |
| Chain Line (mm) | 55 |
| O.L.D. Thru (mm) | 148 |
| P.C.D. (mm) | Direct mount |
| Spider/Gear Arms | TBD |
| Chainring Combination | 30T, 32T |
| Q-factor (mm) | 176 |
| Crank Arm Length (mm) | 165 / 170 / 175 |
| Optional Chain Guard | Without chain guard / bash guard |
| 2-PIECE CRANKSET | Yes |
| Compatible Bottom Bracket Type | Outboard |
| Recommended Bottom Bracket (Threaded) | BB-MT501 |
| Recommended Bottom Bracket (Press-Fit) | BB-MT500-PA |
| Threaded BB Shell Width (mm) | 68 / 73 |
| Crank Fixing Screw Included | Yes |
