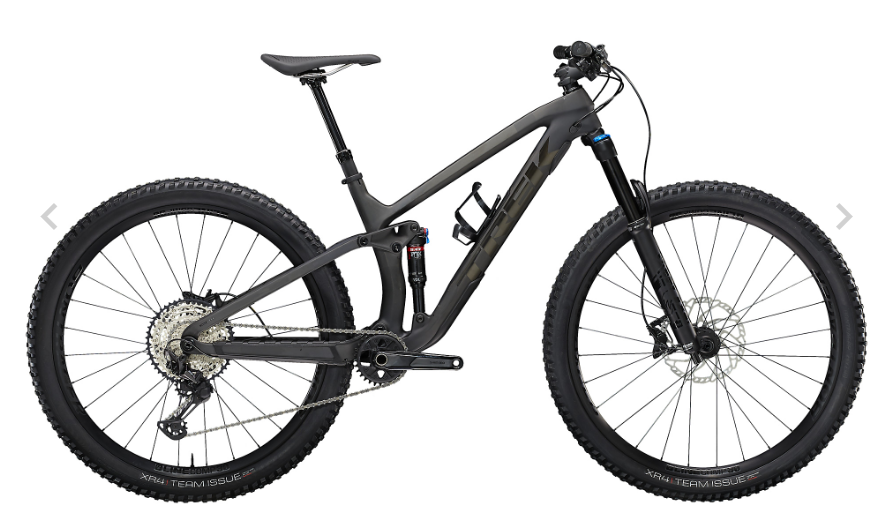

Trek Fuel EX 9.7 GEN 5 29" 前後避震車-Matte Raw Carbon / Trek Fuel EX 9.7 GEN 5 29" SUS Bike- Matte Raw Carbon

Trek Fuel EX 9.7 GEN 5 29" 前後避震車-Matte Raw Carbon / Trek Fuel EX 9.7 GEN 5 29" SUS Bike- Matte Raw Carbon

5259308

HK$24,800.00
HK$24,800.00 HK$24,800.00
Sale Sold out
Shipping calculated at checkout.
大小

Frame
OCLV Mountain Carbon main frame and stays, internal storage, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armour, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130 mm travel
Frame set
OCLV Mountain Carbon main frame and stays, internal storage, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armour, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130 mm travel
Frame
OCLV Mountain Carbon main frame and stays, internal storage, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armour, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130 mm travel
Fork
Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 140 mm travel
*Shock
Size: XS , S
Fox Performance Float EVOL, 3-position RE:aktiv damper, tuned by Trek Suspension Lab, 210 mm x 52.5 mm
Size: ML , M , L , S , XL
Fox Performance Float EVOL, 3-position RE:aktiv damper, tuned by Trek Suspension Lab, 210 mm x 55 mm

*Wheel front
Size: XS , S
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 27.5"
Size: ML , M , L , S , XL
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29"
*Wheel rear
Size: XS , S
Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 54, 6-bolt, Boost148, 12 mm thru axle, 27.5"
Size: XS , S
Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle, 27.5"
Size: ML , M , L , S , XL
Bontrager Line Comp 30, High Strength 6000 Series Aluminium rim, Tubeless-Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle, 29"
Size: ML , M , L , S , XL
Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle, 29"
Skewer rear
Bontrager Switch thru-axle, removable lever
*Tyre
Size: XS , S
Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 27.5 x 2.50"
Size: ML , M , L , S , XL
Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50"
Tyre part
Bontrager TLR sealant, 180 ml/6 oz
Rim strip
Bontrager TLR
Max tyre size
Frame: 29x2.60", Fork: See manufacturer

Shifter
Shimano SLX M7100, 12-speed
Rear derailleur
Shimano XT M8100, long cage
*Crank
Size: ML , M , XS , L , S
Shimano MT611, 30T steel ring, alloy spider, 52 mm chainline, 170 mm length
Size: XL
Shimano MT611, 30T steel ring, alloy spider, 52 mm chainline, 175 mm length
Bottom bracket
Shimano MT500, 92 mm, PressFit
Cassette
Shimano SLX M7100, 10-51T, 12-speed
Chain
Shimano SLX M7100, 12-speed
Max. chainring size
1x: 34T

Saddle
Bontrager Arvada, hollow chromoly rails, 138 mm width
*Seatpost
Size: XS , S
Bontrager Line Dropper, 100 mm travel, internal routing, 31.6 mm, 345 mm length
Size: ML , M , L , XL
Bontrager Line Dropper, 150 mm travel, internal routing, 31.6 mm, 440 mm length
*Handlebar
Size: XS , S
Bontrager Line, alloy, 35 mm, 27.5 mm rise, 750 mm width
Size: ML , M , L , XL
Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width
Grips
Bontrager XR Trail Elite, nylon lock-on
*Stem
Size: XS , S
Bontrager Elite, 35 mm, 0-degree, 35 mm length
Size: ML , M , L , XL
Bontrager Elite, 35 mm, 0-degree, 45 mm length
Head set
Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom
Brake
Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper
*Brake rotor
Size: ML , M , XS , L , S , XL
Shimano RT66, 6-bolt, 180 mm
Size: ML , M , L , XL
Shimano RT66, 6-bolt, 203 mm

Bag
Bontrager BITS Internal Frame Storage Bag

Weight
M - 13.65 kg/30.1 lb (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
