Shimano

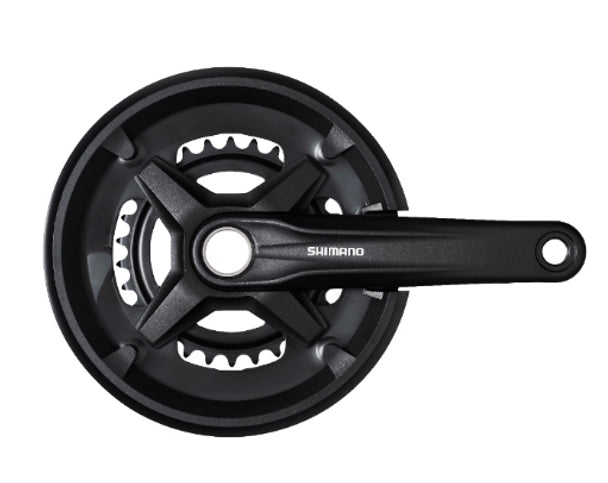

SHIMANO ALTUS 九速雙片鏈鉼-FC-MT210-B2-170MM-36-22T / SHIMANO ALTUS 9 SPEED CRANKSET-FC-MT210-B2-170MM-36-22T
SHIMANO ALTUS 九速雙片鏈鉼-FC-MT210-B2-170MM-36-22T / SHIMANO ALTUS 9 SPEED CRANKSET-FC-MT210-B2-170MM-36-22T
存貨單位 (SKU):EFCMT210BCX62L
定價
HK$280.00
定價
HK$280.00
售價
HK$280.00
單價
/
每
結帳時計算運費。
無法載入取貨服務供應情況
本官網買滿HK$800香港、澳門地區順豐快遞包郵***不包括重量超過5 kg 或 最長邊超過60cm的產品***
滿HKD2000或以上摺車香港本地免運費！！
FC-MT210-B2
SHIMANO - 2-PIECE CRANKSET - 林道越野登山車 - 2x9 速
透過與外則 24 mm 五通碗組相容的 2-件式結構，SHIMANO FC-MT210-B2 被設計用於 2x9 速度登山車傳動系統。其帶有 SG-X 齒盤，可提供精準可靠的變速。
- 順暢又精準的變速性能，適合專精於林道越野的騎乘者
- 較窄的Q-factor設計，提供舒適的登山車騎乘感受
- HYPERDRIVE
- 向外推 3 mm Chain Line
- 承襲高階系列登山車的形象
- 陽極處理曲柄
- 2-PIECE CRANKSET
產品規格
| 型號 | FC-MT210-B2 |
|---|---|
| 系列 | SHIMANO ALIVIO M4000 系列 |
| 顏色 | 黑色 |
| 備註 | Chainline 向外推 3 mm |
| 2-PIECE CRANKSET | ✔ |
|---|---|
| 齒盤組合 | 36-22T |
| 相容的五通碗組類型_向外推 | ✔ |
| 含曲柄固定螺絲 | ✔ |
| 齒盤曲柄長度 (mm)_170 | ✔ |
| 齒盤曲柄長度 (mm)_175 | ✔ |
| 曲柄支臂/齒片曲柄 | 4 |
| 選用的鏈條保護片_不含鏈條保護片/撞擊保護蓋 | ✔ |
| 建議使用的五通碗組_壓入式 | BB-MT500-PA |
| 建議使用的五通碗組_牙紋式 (標準型) | BB-MT500 |
| 牙紋式五通管寬度 (mm)_68 | ✔ |
| 牙紋式五通管寬度 (mm)_73 | ✔ |
| Q-factor (mm) | 176 |
| Chain Line (mm) | 51.8 |
| 相容鏈條 | HG 9 速 |
| P.C.D. (mm) | 鉚接 |
| 後變速別 | 9 |
| O.L.D._QR/螺帽 (mm) | 141 |
| O.L.D._貫穿式 (mm) | 148 |
FC-MT210-B2
SHIMANO - 2-PIECE CRANKSET - Trail MTB - 2x9-speed
With a 2-piece construction compatible with outboard 24mm bottom brackets, the SHIMANO FC-MT210-B2 is designed for 2x9 speed MTB drivetrains. It features SG-X chainrings and precise, reliable shifting.
- Smooth and precise shifting performance for trail focused riders
- Narrow Q-factor provides comfortable MTB riding
- HYPERDRIVE
- 3 mm outboard chain line
- Cascading higher series MTB image
- Anodized crank
- 2-PIECE CRANKSET
| MODEL NO | FC-MT210-B2 |
|---|---|
| SERIES | SHIMANO ALIVIO M4000 Series |
| Color | Black |
| Remarks | Chain line 3 mm outboard |
| 2-PIECE CRANKSET | ✔ |
|---|---|
| Chainring combination | 36-22T |
| Compatible bottom bracket type_Outboard | ✔ |
| Crank fixing screw included | ✔ |
| Crank arm length (mm)_170 | ✔ |
| Crank arm length (mm)_175 | ✔ |
| Spider/Gear arms | 4 |
| Optional chain guard_Without chain/bash guard | ✔ |
| Recommended bottom bracket_Press-fit | BB-MT500-PA |
| Recommended bottom bracket_Threaded (normal) | BB-MT500 |
| Threaded bottom bracket shell width (mm)_68 | ✔ |
| Threaded bottom bracket shell width (mm)_73 | ✔ |
| Q-factor (mm) | 176 |
| Chain line (mm) | 51.8 |
| Compatible chain | HG 9-speed |
| P.C.D. (mm) | Riveted |
| Rear speeds | 9 |
| O.L.D._QR/Nut (mm) | 141 |
| O.L.D._Thru (mm) | 148 |
網站顯示為倉存數量，如想到門店購買，請致電門市查詢現貨：2670 2318🙏 多謝支持
